BVS-250 steel Heavy duty, sealed cover
Load capacity:
250 kN test load EN 124 when completely filled with concrete C 35/45 (EN 206).
Material:
Frame and cover made of steel plate, hot-dip galvanised.
Features:

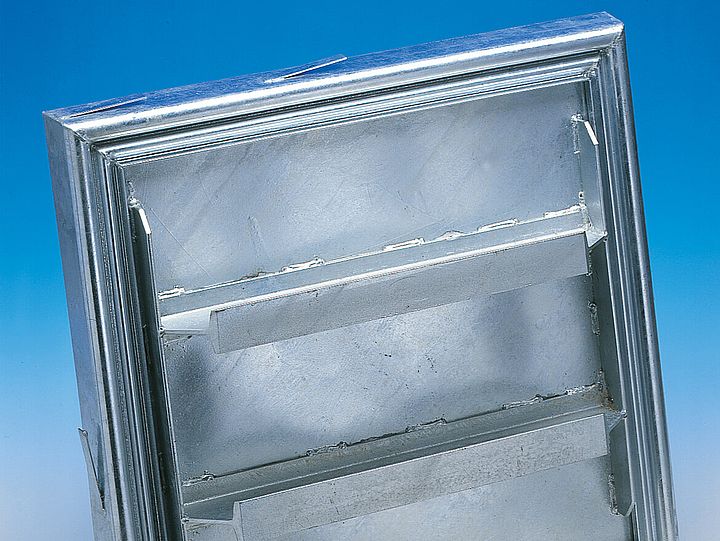

Heavy duty sealed cover. Underside of cover reinforced with steel I-beam section. Robust steel mesh reinforcement. EPDM seal. Tapered design allows easy opening.
The Lift-Off opening system:
Every HAGODECK Type BVS-250 steel cover comes with a set of lifting keys and precise installation instructions.
The HAGO advantage: jammed covers are released by simply turning the Golden Key.
Applications:
For vehicle traffic areas in industrial buildings and their surrounding areas, where the cover needs to be heavy duty.
Installation:
Installation must be carried out according to our instructions. With watertight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & Dimensions
| Type | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight empty approx. | S/O* |
|---|---|---|---|---|
| c x d | A x B | |||
| BVS 250/ 44 | 40 x 40 | 53,5 x 53,5 | 17 kg | S |
| BVS 250/ 55 | 50 x 50 | 63,5 x 63,5 | 26 kg | S |
| BVS 250/ 64 | 60 x 40 | 73,5 x 53,5 | 25 kg | S |
| BVS 250/ 66 | 60 x 60 | 73,5 x 73,5 | 31 kg | S |
| BVS 250/ 86 | 80 x 60 | 93,5 x 73,5 | 38 kg | O |
| BVS 250/ 88 | 80 x 80 | 93,5 x 93,5 | 52 kg | S |
| BVS 250/106 | 100 x 60 | 113,5 x 73,5 | 52 kg | S |
| BVS 250/110 | 100 x 100 | 113,5 x113,5 | 78 kg | S |
Cover depth ≈ 5.0 cm
Installation height ≈ 7.5 cm
Steel girders penetrate ≈ 10 cm into the shaft
Special sizes possible
*S = available from stock
*O = to order
Section drawing
- 1 / Frame
- 2 / Cover
- 3 / Seal
- 4 / Reinforcement
- 5 / Allen screw
- 6 / Plastic cap
- 7 / Anchor
- 8 / Reinforcement
Specification clause
HAGODECK Type BVS 250 (galvanised steel)
Access cover with Golden Key Lift Off opening tool, Type HAGODECK BVS 250, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish. Hot-dip galvanised steel, sealed, 250 kN (EN 124), unobtrusive corner joints (max. visible surface 35 x 35 mm). Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
