B steel galvanised sealed cover
Load capacity:
125 kN test load EN 124
Material:
Frame and cover in 2 mm cold-formed precision steel profiles. Hot-dip galvanised.
Features:

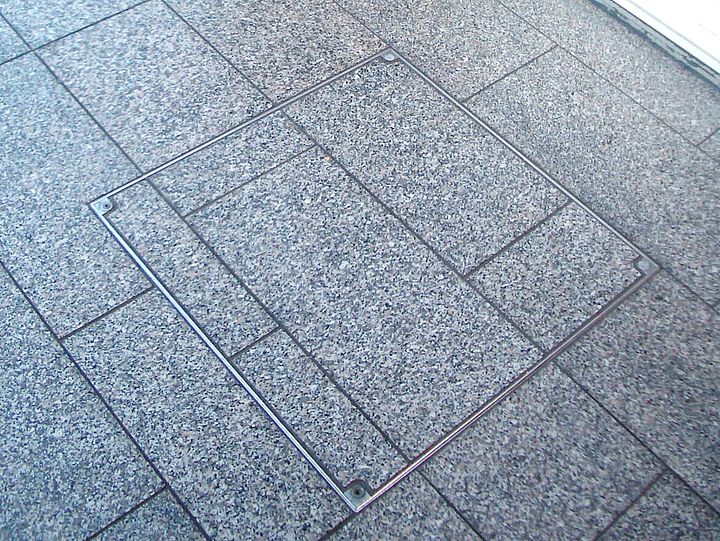

Standard version (not sealed). Type B should only be used where the “sealed” characteristic is not required. Tapered design allows easy opening. Virtually invisible when installed. Robust steel mesh reinforcement, crosswise welded.
Opening:

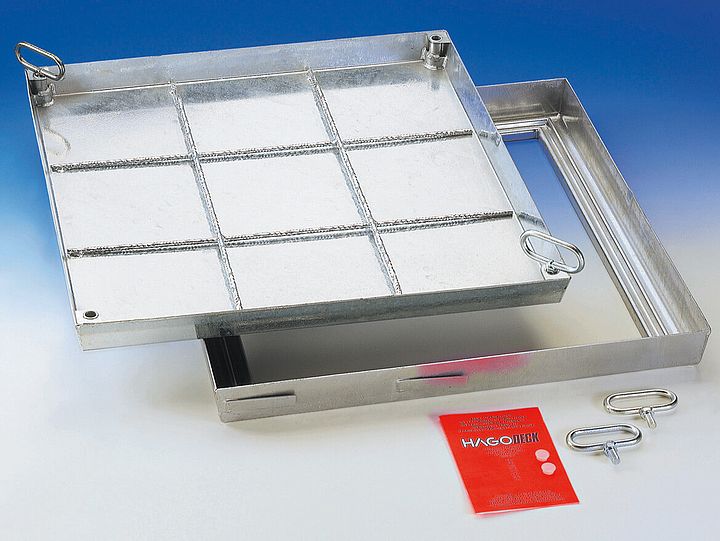

Every HAGODECK Type B steel cover comes with a set of lifting keys and precise installation instructions.
Applications:
Inside buildings over sealed inspection fittings or installations where a fully sealed cover is not needed.
Installation:
Installation must be carried out according to our instructions.
Types & Dimensions
| Type | Clear dimensions of shaft (cm) | Outside dimensions (cm) | Weight empty approx | S/O* |
|---|---|---|---|---|
| c x d | A x B | |||
| B 55 | 50 x 50 | 63,5 x 63,5 | 15 kg | S |
| B 64 | 60 x 40 | 73,5 x 53,5 | 15 kg | S |
| B 66 | 60 x 60 | 73,5 x 73,5 | 19 kg | S |
| B 635 | 63,5 x 63,5 | 77,0 x 77,0 | 20 kg | S |
| B 86 | 80 x 60 | 93,5 x 73,5 | 23 kg | S |
| B 88 | 80 x 80 | 93,5 x 93,5 | 29 kg | S |
Section Drawing
- 1 / Frame
- 2 / Cover
- 3 / Reinforcement
- 4 / Plastic cap
- 5 / Anchor
Specification clause
HAGODECK Type B (galvanised steel)
Access cover with Golden Key Lift Off opening tool, Type HAGODECK B, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish. Galvanised steel, normal version (non-sealed), 125 kN (EN 124), unobtrusive corner joints (max. visible surface 35 x 35 mm). Installation shall be according to the manufacturer’s instructions.
