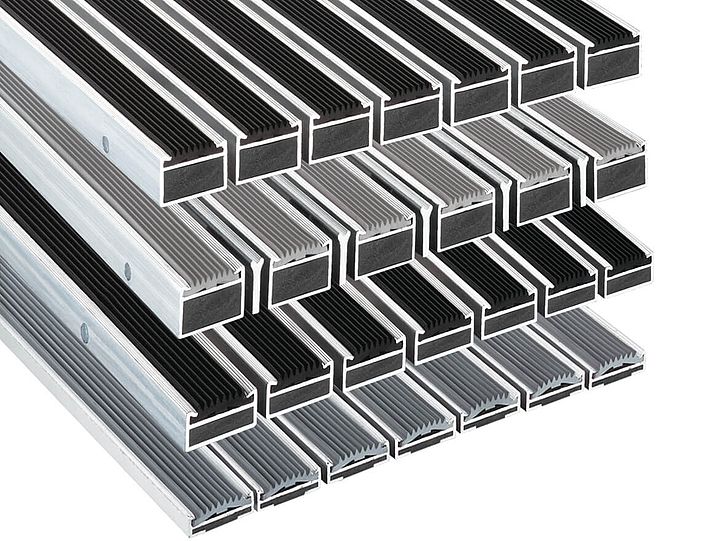

Aluminium profile with grooved side bars. Grooved rubber strips with superior wiping action.
5 mm or 10 mm profile spacing
With snow scraper bar
Available in the reinforced version with a solid hard plastic core upon request.
Weatherproof. Ideally suited for coarse cleaning. Sound dampened and non-slip from rubber strips on the underside.
Reaction to fire:
Classified according to EN 11925-2 and EN-9239-1: Cfl-s1 (equivalent to B1, Q1 according to the previous ÖNORM)
Mat height: 24 mm, 17 mm, 10 mm Profile spacing: Approx. 5 mm or 10 mm Profile length: Max. 2.00 m – longer mats are made in two or more parts. Large mats must also be made in two or more parts in their walking depth as well. If the mat is to be self-supporting, then a crossbar must be laid every 30 cm.
Standard sizes (finished mat sizes):
59×39 cm, 79×49 cm (10 mm profile spacing) Standard colours black and grey.
Any mat shape is possible!
Approx. 15 kg/m² for 24 mm height Approx. 14 kg/m² for 17 mm height Approx. 12 kg/m² for 10 mm height
Simply vacuum the surface and the underlying surface (ideally daily). For extreme dirt, hose off with pressurized water (e. g. high pressure water jet cleaner).
Approx. mat height
Compatible angle frame inside height
Hagomat Combistrip 24 5 mm profile spacing
Hagomat Combistrip 24 10 mm profile spacing
Hagomat Combistrip 24 with snow scraper bar
Hagomat Combistrip 17 5 mm profile spacing
Hagomat Combistrip 17 10 mm profile spacing
Hagomat Combistrip 10 5 mm profile spacing
Also available in the reinforced version for the 24 mm and 17 mm heights.
HAGOMAT Combistrip. . . . , Part no. . . . . . . . . . with grooved side bars and grooved rubber inserts. Colour of tthe rubber strips. . . . . . . . . . Mat height: . . . . . . Made to measure without compensating end profiles. Reaction to fire: Cfl-s1. Delivery and installation.
