RVA Aluminium Sealed cover
Load capacity:
15 kN test load EN 124.
Material:

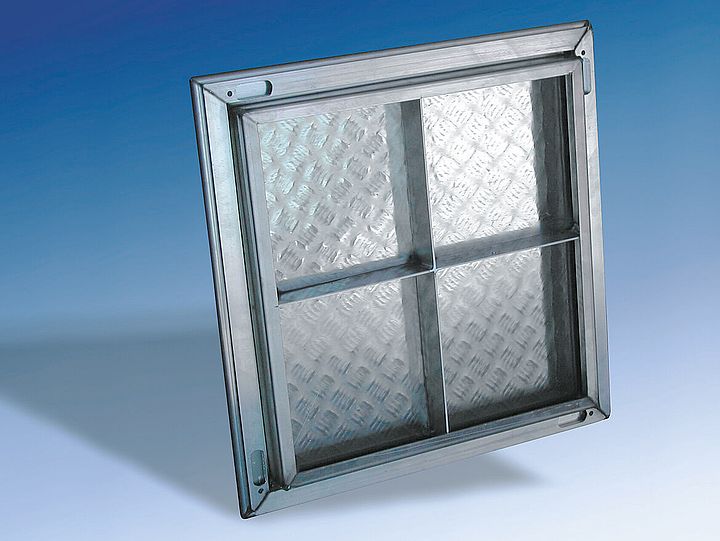

Frame made of aluminium extruded sections. Cover made of 3/5 mm aluminium chequerplate. Aluminium reinforcement to the underside. Stainless steel screws.
Features:
Sealed cover. EPDM seal. Completely rust-proof. Light weight. Opening tool included.
Applications:
For pedestrian use inside buildings and their surroundings, particularly where corrosion-resistance and/or low weight are of great advantage.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & Dimensions
| Type | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight approx. | S/O* |
|---|---|---|---|---|
| c x d | A x B | |||
| RVA 22 | 20 x 20 | 28,5 x 28,5 | 2 kg | S |
| RVA 33 | 30 x 30 | 38,5 x 38,5 | 3 kg | S |
| RVA 44 | 40 x 40 | 48,5 x 48,5 | 4 kg | S |
| RVA 55 | 50 x 50 | 58,5 x 58,5 | 5 kg | S |
| RVA 64 | 60 x 40 | 68,5 x 48,5 | 5 kg | S |
| RVA 66 | 60 x 60 | 68,5 x 68,5 | 8 kg | S |
| RVA 86 | 80 x 60 | 88,5 x 68,5 | 10 kg | S |
| RVA 88 | 80 x 80 | 88,5 x 88,5 | 12 kg | S |
| RVA106 | 100 x 60 | 108,5 x 68,5 | 12 kg | S |
| RVA110 | 100 x100 | 108,5 x108,5 | 18 kg | S |
Installation height ≈ 3.5 cm
Total height including reinforcement of bottom ≈ 7 cm
Special sizes possible
*S = available from stock
*O = to order
Section drawing
- 1 / Frame
- 2 / Cover
- 3 / Seal
- 4 / Allen screw
- 5 / Plastic cap
- 6 / Cover reinforcement
Specification clause
HAGODECK Type RVA (aluminium)
Access cover with chequerplate with Golden Key Lift Off opening tool, Type HAGODECK RVA, clear opening ....... x ....... cm. Aluminium, sealed, stainless steel screws. 15 kN (EN 124). Installation shall be according to the manufacturer’s instructions. Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
